Level of Detail (LOD) Classification

LOD3 Building Model

Overview​

Level of Detail (LOD) is a fundamental concept in 3D building modeling and architectural analysis. This library focuses on classifying buildings based on their geometric complexity and detail level, particularly targeting LOD3 classification from LiDAR point clouds.

LOD Levels Explained​

LOD0 - Regional/Footprint Level​

  • Description: 2D building footprints without height information
  • Use Cases: Urban planning, land use analysis
  • Data Source: Cadastral maps, satellite imagery

LOD1 - Block Model​

  • Description: Simple extruded building blocks with uniform height
  • Geometry: Basic rectangular prisms
  • Use Cases: City-scale visualization, urban morphology studies

LOD2 - Roof Structure​

  • Description: Buildings with detailed roof structures and major architectural elements
  • Features: Roof shapes, dormers, chimneys
  • Use Cases: Solar potential analysis, detailed urban modeling

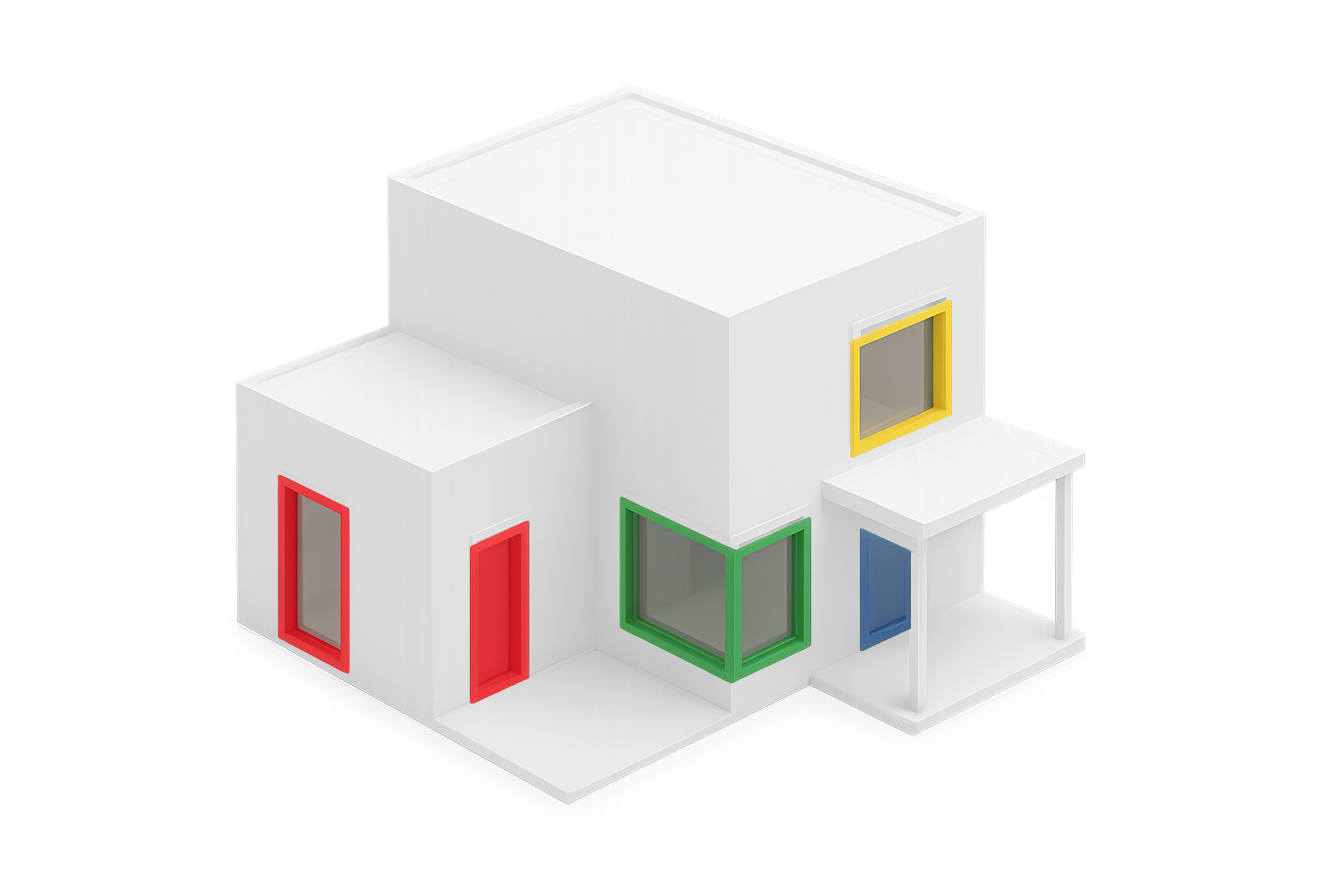

LOD3 - Architectural Detail (Target)​

  • Description: Detailed building models including facade elements
  • Features:
    • Windows and doors
    • Balconies and terraces
    • Architectural ornaments
    • Building textures
  • Use Cases: Heritage documentation, detailed visualization, architectural analysis

LOD4 - Interior Structure​

  • Description: Complete building models including interior spaces
  • Features: Room layouts, furniture, interior architectural elements
  • Use Cases: Indoor navigation, facility management

LOD3 Classification with LiDAR​

Why LOD3?​

LOD3 represents the optimal balance between geometric detail and computational feasibility for LiDAR-based analysis:

  • Sufficient Detail: Captures essential architectural features visible in high-resolution LiDAR
  • Processing Efficiency: Manageable computational requirements
  • Practical Applications: Supports real-world use cases in architecture and urban planning

Key Features for LOD3 Detection​

  1. Facade Complexity

    • Window and door openings
    • Balcony protrusions
    • Architectural ornaments

  2. Geometric Regularity

    • Consistent architectural patterns
    • Repetitive structural elements
    • Symmetrical facades

  3. Point Density Analysis

    • High-resolution detail capture
    • Surface texture information
    • Edge definition quality

Classification Workflow​

Implementation Example​

from ign_lidar import Processor
from ign_lidar.architectural_styles import ArchitecturalAnalyzer

# Initialize processor with LOD3 focus
processor = Processor(
    target_lod='LOD3',
    detail_threshold=0.8,
    complexity_analysis=True
)

# Analyze architectural details
analyzer = ArchitecturalAnalyzer()

# Process building for LOD3 classification
results = processor.classify_building_lod(
    point_cloud_path="building.las",
    architectural_analysis=True
)

print(f"Detected LOD: {results['lod_level']}")
print(f"Confidence: {results['confidence']:.2f}")
print(f"Key features: {results['detected_features']}")

Quality Metrics​

LOD3 Classification Confidence​

  • High Confidence (>0.8): Clear architectural details, regular patterns
  • Medium Confidence (0.5-0.8): Some architectural elements, moderate detail
  • Low Confidence (<0.5): Minimal architectural detail, simple geometry

Validation Criteria​

  1. Facade Detail Score: Measures window/door detection accuracy
  2. Geometric Complexity: Quantifies architectural ornament presence
  3. Pattern Regularity: Evaluates structural consistency
  4. Point Density Quality: Assesses LiDAR capture resolution

Best Practices​

For Optimal LOD3 Classification​

  1. Input Data Quality

    • Use high-density LiDAR (>10 points/m²)
    • Ensure good building coverage
    • Minimize occlusion effects

  2. Processing Parameters

    • Adjust detail thresholds based on building type
    • Consider regional architectural styles
    • Validate results with ground truth data

  3. Post-Processing

    • Review classification confidence scores
    • Manual verification for critical applications
    • Cross-reference with architectural databases

Further Reading​

  • CityGML LOD Specification: Official standards for 3D city modeling
  • IGN Technical Documentation: French national mapping agency guidelines
  • Architectural Pattern Recognition: Academic research on building classification
